Professional 1 kW transom-mount transducer featuring 50/200 kHz dual-frequency sonar, integrated water temperature sensor, heavy-duty urethane housing, and a 9-pin xSonic connector for compatible Lowrance, Simrad, and B&G multifunction displays.
Stock: available

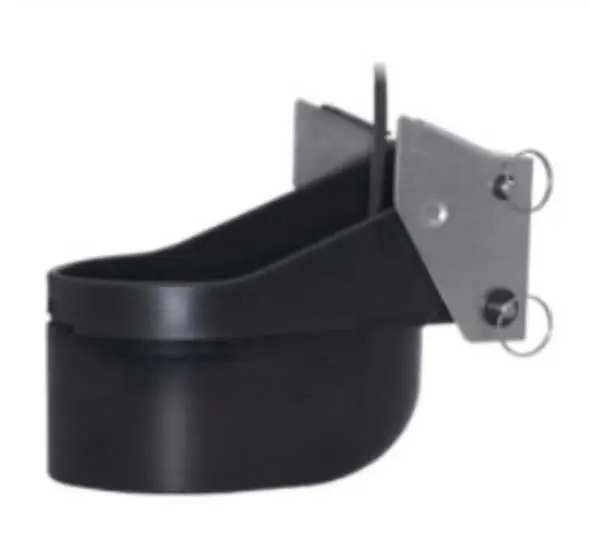

Lowrance xSonic Airmar TM260 Transom Mount Transducer (50/200 kHz, 1kW, 9-Pin)
Overview
The Lowrance xSonic Airmar TM260 is a professional-grade 1 kW dual-frequency transom-mount transducer engineered for offshore fishing and deep-water applications. Operating at 50/200 kHz, it provides outstanding bottom tracking, excellent fish target separation, and exceptional deep-water performance. The transducer features an integrated water temperature sensor and a 9-pin xSonic connector for compatibility with selected Lowrance, Simrad, and B&G multifunction displays.
Built with Airmar’s rugged urethane housing and a heavy-duty stainless steel mounting bracket, the TM260 is capable of maintaining accurate sonar readings even at high boat speeds. Its high-power ceramic elements make it a popular choice for serious offshore anglers and commercial marine applications.
Main Features
- 1 kW dual-frequency transducer
- 50/200 kHz broadband sonar
- Transom-mount installation
- Built-in water temperature sensor
- 9-pin xSonic connector
- Excellent deep-water performance
- Superior fish target separation
- Heavy-duty urethane housing
- Stainless steel mounting bracket
- Compatible with selected Lowrance, Simrad & B&G displays
Specifications
| Specification | Value |
|---|---|
| Brand | Lowrance |
| Manufacturer | Airmar |
| Model | xSonic TM260 |
| Part Number | 000-13904-001 |
| Product Type | Transom Mount Transducer |
| Mounting Type | Transom |
| Frequency | 50 / 200 kHz |
| Power Rating | 1 kW |
| Beam Angle | 19° @ 50 kHz / 6° @ 200 kHz |
| Maximum Depth | Up to 900 m (3,000 ft), depending on sonar unit and conditions |
| Connector | 9-Pin xSonic |
| Functions | Depth & Water Temperature |
| Housing Material | Urethane |
| Mounting Bracket | Stainless Steel |
| Cable Length | 10 m (33 ft) |
| Hull Compatibility | Fiberglass, Aluminum, Steel & Wood |
Package Contents
- 1 × Lowrance xSonic Airmar TM260 Transducer
- Stainless steel transom mounting bracket
- Mounting hardware
- Installation guide
