Lowrance HDS PRO 9 with Active Imaging™ HD 3-in-1
Overview
The Lowrance HDS PRO 9 with Active Imaging™ HD 3-in-1 is a premium fish finder and chartplotter built for anglers who demand exceptional sonar detail, advanced navigation, and full integration with onboard marine electronics. Its 9-inch SolarMAX™ HD hybrid display combines a responsive multi-touch interface with dedicated keypad controls, delivering outstanding visibility in direct sunlight and through polarized sunglasses while ensuring reliable operation in all conditions.
Supplied with the Active Imaging™ HD 3-in-1 transducer, the HDS PRO 9 provides high-definition CHIRP Sonar, SideScan Imaging™, DownScan Imaging™, and FishReveal™ technology for outstanding target separation and structure definition. It also supports ActiveTarget® 2 Live Sonar, integrated GPS, wireless connectivity, Ethernet, and NMEA 2000® networking, making it the ideal centerpiece for a fully connected fishing system.
Main Features
- 9″ SolarMAX™ HD hybrid display
- Active Imaging™ HD 3-in-1 transducer included
- CHIRP Sonar
- High-definition SideScan Imaging™
- High-definition DownScan Imaging™
- FishReveal™ technology
- Compatible with ActiveTarget® 2 Live Sonar
- Integrated Wi-Fi®, Bluetooth®, Ethernet and NMEA 2000®
- Built-in 10 Hz GPS receiver
- Compatible with C-MAP® and Navionics® charts
Specifications
| Specification | Value |
|---|---|
| Brand | Lowrance |
| Product Series | HDS PRO |
| Model | HDS PRO 9 with Active Imaging™ HD 3-in-1 |
| Part Number | 000-16000-001 |
| Display Size | 9″ |
| Display Type | SolarMAX™ HD Hybrid Display (Touchscreen & Keypad) |
| Display Resolution | 1280 × 720 pixels |
| Screen Brightness | >1200 nits |
| Viewing Angle | 80° |
| GPS | Internal 10 Hz GPS (GPS / GLONASS / Galileo) |
| Chartplotter | Yes |
| Included Transducer | Active Imaging™ HD 3-in-1 |
| Sonar Technology | CHIRP Sonar, SideScan Imaging™, DownScan Imaging™ |
| FishReveal™ | Yes |
| Live Sonar Support | ActiveTarget® 2 |
| Mapping | Preloaded Worldwide Basemap |
| Compatible Charts | C-MAP®, Navionics® |
| Internal Storage | 8 GB |
| Card Slots | 2 × microSD (up to 32 GB each) |
| Wi-Fi | Integrated |
| Bluetooth® | Integrated |
| Ethernet | 1 × 100 Mbit |
| NMEA 2000® | Yes |
| NMEA 0183 | Yes |
| Radar Support | Yes (HALO® compatible) |
| Autopilot Support | Yes |
| Trolling Motor Integration | Yes |
| Waterproof Rating | IPX7 |
| Operating Voltage | 10.8–17 V DC |
| Mounting Options | Gimbal bracket or flush mount |
Package Contents
- Lowrance HDS PRO 9 display
- Active Imaging™ HD 3-in-1 transducer
- Gimbal mounting bracket
- Power cable with inline fuse
- Protective sun cover
- Mounting hardware
- Quick Start Guide
- Installation documentation
Related products
-

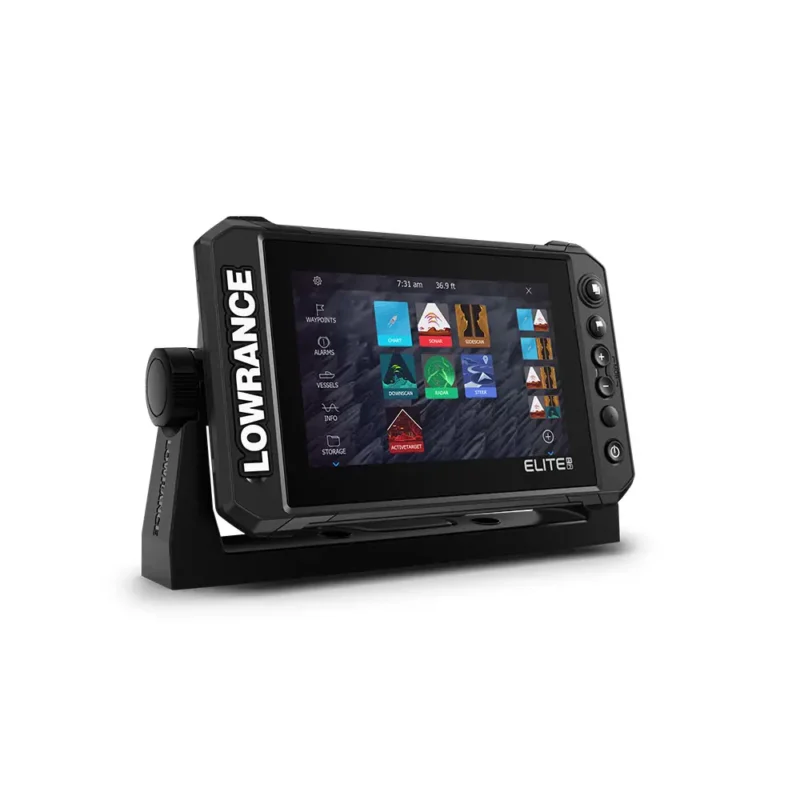

ELITE FS 7” + Active Imaging 3in 1
