Original price was: $38,500.00.$37,500.00Current price is: $37,500.00.
Dedicated StructureScan® HD transom-mount transducer featuring SideScan, DownScan Imaging™, 455/800 kHz frequencies, 500W RMS output, integrated temperature sensor, and a 9-pin connector for compatible Lowrance, Simrad, and B&G StructureScan systems.
Stock: available

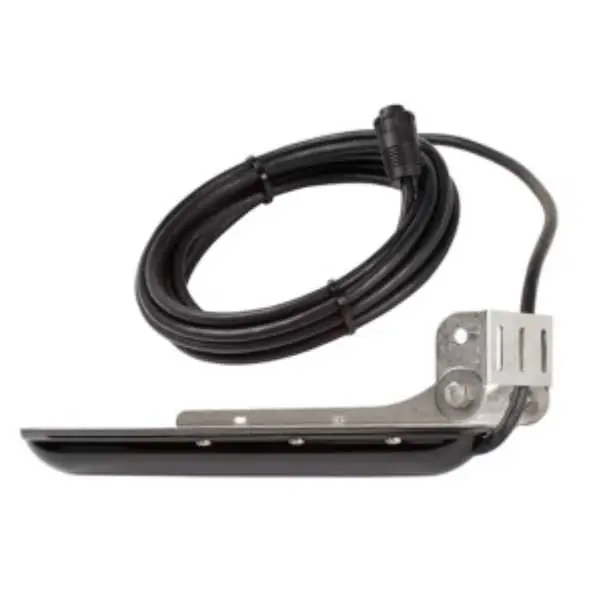

Lowrance StructureScan® HD Skimmer Transducer (SideScan & DownScan Imaging™, 455/800 kHz)
Overview
The Lowrance StructureScan® HD Skimmer Transducer is a dedicated transom-mount imaging transducer designed to deliver high-resolution SideScan and DownScan Imaging™ for detailed underwater structure visualization. Operating at 455 kHz and 800 kHz, it provides exceptional clarity when locating rocks, wrecks, vegetation, drop-offs, and fish-holding structure. It is intended for use with compatible StructureScan® modules or multifunction displays with built-in StructureScan support.
Featuring a rugged low-profile Skimmer housing, an integrated water temperature sensor, and a 9-pin StructureScan connector, the transducer is designed for reliable performance in both freshwater and saltwater environments.
Main Features
- StructureScan® HD imaging transducer
- SideScan Imaging
- DownScan Imaging™
- 455/800 kHz imaging frequencies
- 500W RMS transmit power
- Built-in water temperature sensor
- High-speed transom-mount installation
- 9-pin StructureScan connector
- Compatible with StructureScan-enabled Lowrance, Simrad & B&G systems
- Low-profile Skimmer design
Specifications
| Specification | Value |
|---|---|
| Brand | Lowrance |
| Model | StructureScan® HD Skimmer |
| Part Number | 000-10802-001 |
| Product Type | Imaging Transducer |
| Mounting Type | Transom |
| Sonar Technology | SideScan & DownScan Imaging™ |
| Imaging Frequencies | 455 / 800 kHz |
| Transmit Power | 500 W RMS |
| Connector | 9-Pin StructureScan |
| Functions | SideScan, DownScan & Water Temperature |
| Temperature Sensor | Integrated |
| Cable Length | 6 m (20 ft) |
| Housing Material | Plastic |
| Compatible Systems | Lowrance, Simrad & B&G displays with StructureScan support or LSS-1/LSS-2 modules |
Package Contents
- 1 × Lowrance StructureScan® HD Skimmer Transducer
- Transom mounting bracket
- Mounting hardware
- Installation guide
