Lowrance StructureScan® 3D Transducer (SideScan, DownScan & 3D Imaging)

Overview

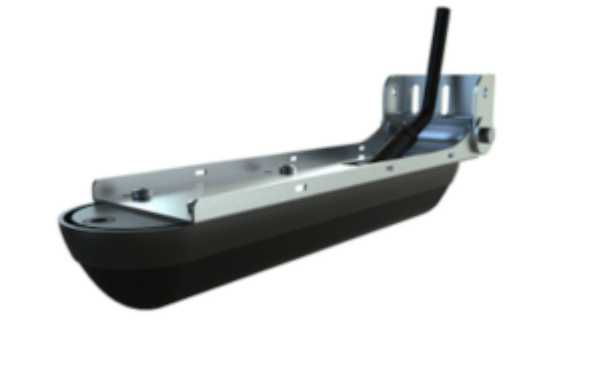

The Lowrance StructureScan® 3D Transducer is a premium transom-mount imaging transducer designed to produce high-resolution 3D, SideScan, and DownScan Imaging™ views of the underwater environment. When used with the StructureScan® 3D Module, it creates a realistic 180° three-dimensional representation of the bottom, allowing anglers to identify structure, contours, and fish-holding areas with exceptional clarity.

Operating at 455 kHz and 800 kHz, the transducer delivers side imaging coverage of up to 180 m (600 ft) on each side of the boat while enhancing traditional DownScan Imaging™ performance. It is designed for transom, step, or jackplate mounting and includes an integrated mounting bracket for flexible installation.

Main Features

• StructureScan® 3D imaging transducer
• SideScan Imaging
• DownScan Imaging™
• 3D bottom and structure imaging
• 455/800 kHz imaging frequencies
• 180° three-dimensional underwater view
• Up to 180 m (600 ft) side coverage per side
• Transom, step, or jackplate mounting
• Compatible with StructureScan® 3D Module
• Multi-beam sonar technology

Specifications

Package Contents

• 1 × Lowrance StructureScan® 3D Transducer
• Transom mounting bracket
• Mounting hardware
• Installation guide
