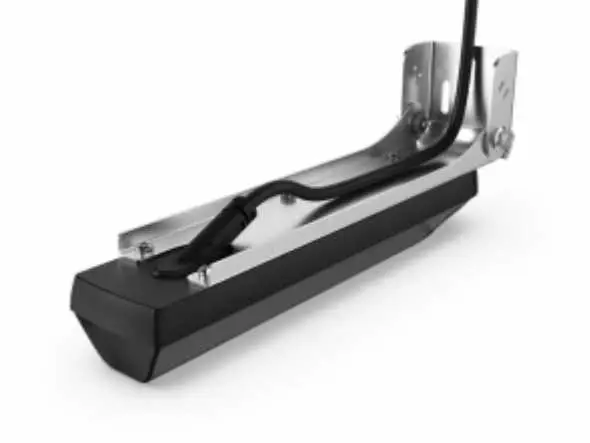

Lowrance Active Imaging™ HD 3-in-1 Transducer (CHIRP, SideScan HD & DownScan HD, 9-Pin)

Overview

The Lowrance Active Imaging™ HD 3-in-1 is a premium transom-mount sonar transducer that combines CHIRP Sonar, SideScan HD, and DownScan Imaging™ HD into a single unit. Designed to deliver the highest level of underwater detail, it offers superior target separation, ultra-high-definition structure imaging, and FishReveal™ DownScan for easier fish identification. It features a 9-pin xSonic connector and is designed for use with Lowrance HDS PRO or with an S3100 Sonar Module when paired with HDS LIVE, HDS Carbon, and Elite FS displays.

With support for Medium/High CHIRP, 455/700/1000/1200 kHz imaging frequencies, and an integrated water temperature sensor, the Active Imaging™ HD 3-in-1 delivers Lowrance’s clearest sonar images to date. Its rugged transom-mount design ensures reliable performance in both freshwater and saltwater environments.

Main Features

• Active Imaging™ HD 3-in-1 transducer
• CHIRP Sonar
• SideScan HD Imaging
• DownScan Imaging™ HD
• FishReveal™ DownScan view
• Medium & High CHIRP support (83/200 kHz)
• 455/700/1000/1200 kHz imaging frequencies
• Built-in water temperature sensor
• High-speed transom-mount installation
• 9-pin xSonic connector
• Compatible with Lowrance HDS PRO (direct) and HDS LIVE, HDS Carbon & Elite FS (via S3100)

Specifications

Package Contents

• 1 × Lowrance Active Imaging™ HD 3-in-1 Transducer
• Transom mounting bracket
• Adjustable mounting plate
• Mounting hardware
• Installation guide
