Actisense NMEA 2000 Micro Terminator
Actisense terminators are exceptionally robust to withstand the harsh conditions of the marine environment and have been designed for quick and easy installation.
Each NMEA 2000 installation must have precisely two termination resistors installed, on at each end of the backbone, to ensure proper operation and signal integrity.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge
Stock: available
Ordering Information

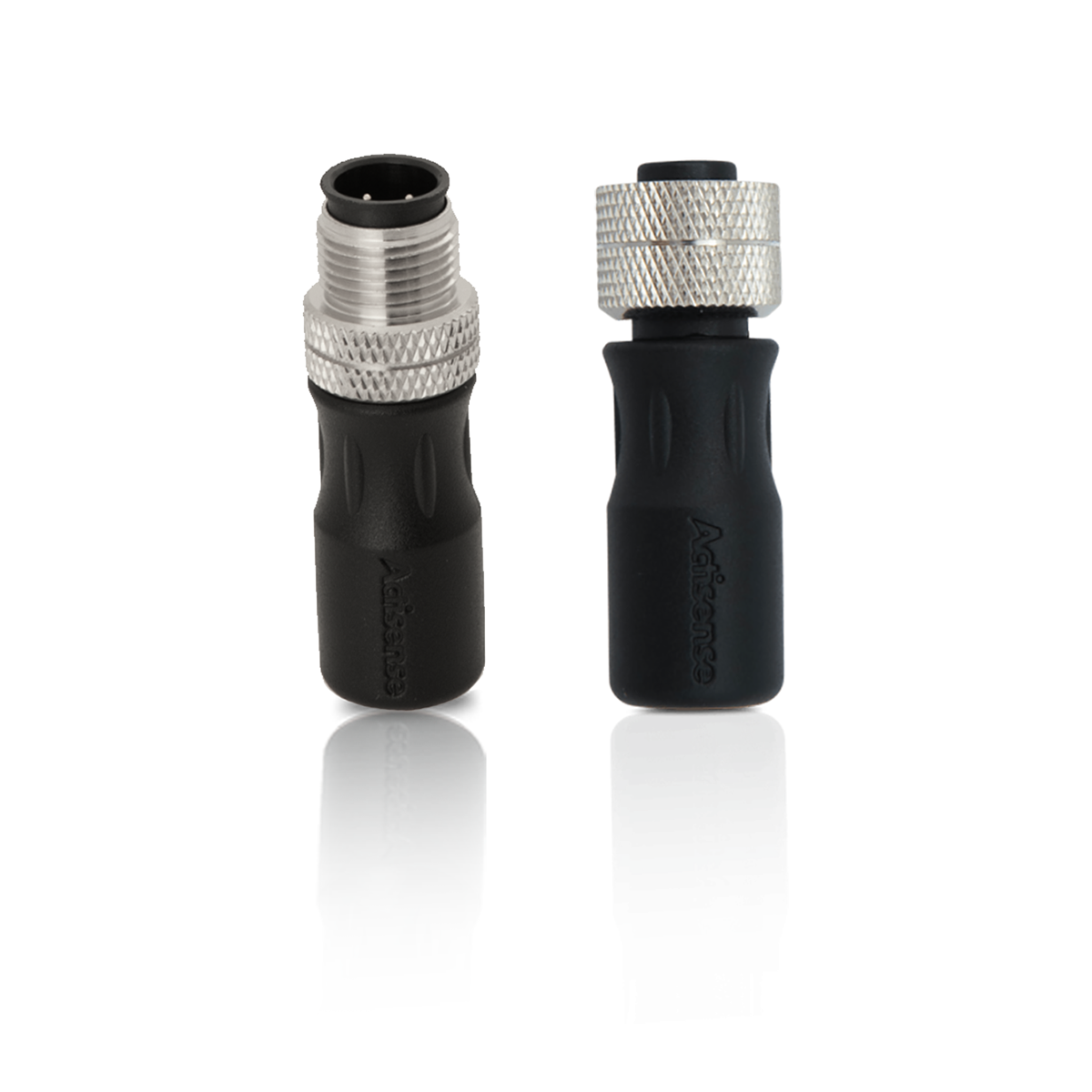

Available in both male and female versions, please select the version you require:
A2K-TER-F NMEA 2000 micro terminator female
A2K-TER-M NMEA 2000 micro terminator male
Tech Specs
| Electrical | |
| Rated Voltage (power pair) | 60V DC |
| Rated Current | 4A |
| Internal Termination Resistors | 120 Ω ± 1% 500mW |
| Mechanical | |
| Male Contact (TER-M) | Brass, gold plated |
| Female Contact (TER-F) | Phosphor bronze, gold plated |
| Contact Carrier | PA66 (30% Glass filled), black |
| Contact Polarisation | Standard M12 -“A”- polarisation |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber, Black |
| Housing | PVC, black |
| Weight | 15g |
| Approvals and Certifications | |
| NMEA 2000 Approved | |
| RoHS Compliant | |
| UL Certified (UL1277) | |
| Protection | IP67 (when mated) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
