Bronze through-hull HDI transducer featuring Low/High CHIRP sonar, 50/200 kHz traditional frequencies, 455/800 kHz DownScan Imaging™, 0° tilted-element design, integrated temperature sensor, and a 9-pin xSonic connector for compatible Lowrance fishfinders and chartplotters.
Stock: available

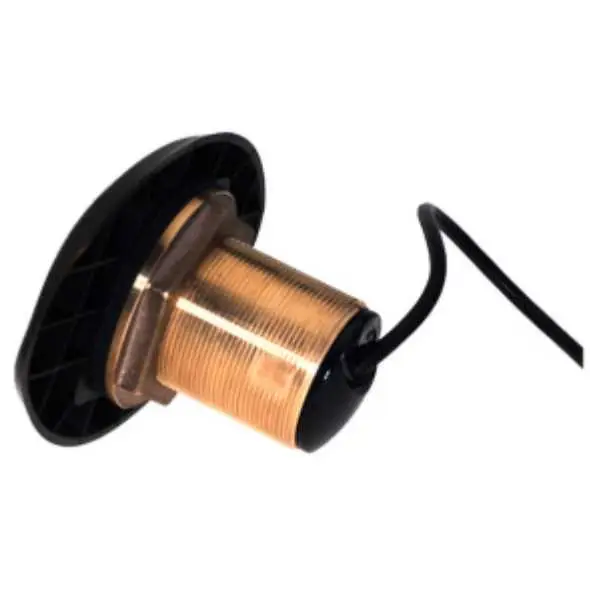

Lowrance xSonic Bronze HDI Through-Hull Transducer (Low/High CHIRP, DownScan Imaging™, 0° Tilt, 9-Pin)
Overview
The Lowrance xSonic Bronze HDI is a premium bronze through-hull Hybrid Dual Imaging (HDI) transducer that combines Low/High CHIRP Broadband Sonar with DownScan Imaging™ for exceptional underwater detail, accurate depth readings, and superior fish target separation. Designed for boats with 0°–7° hull deadrise, this version features a 0° tilted-element housing and a 9-pin xSonic connector for compatibility with selected Lowrance, Simrad, and B&G multifunction displays.
Its bronze housing provides excellent corrosion resistance for fiberglass and wood hulls, while the integrated water temperature sensor delivers real-time temperature data. The tilted-element design eliminates the need for a fairing block, reducing drag while maintaining optimal sonar performance.
Main Features
- Bronze through-hull HDI transducer
- Low & High CHIRP Broadband Sonar
- DownScan Imaging™
- 50/200 kHz traditional sonar
- 455/800 kHz DownScan Imaging™
- 0° tilted-element design
- Recommended for 0°–7° hull deadrise
- Built-in water temperature sensor
- 9-pin xSonic connector
- 10 m (33 ft) cable
- No fairing block required
Specifications
| Specification | Value |
|---|---|
| Brand | Lowrance |
| Manufacturer | Airmar |
| Model | xSonic Bronze HDI |
| Part Number | 000-13905-001 |
| Product Type | Through-Hull HDI Transducer |
| Mounting Type | Through-Hull |
| Sonar Technology | Low/High CHIRP Broadband Sonar + DownScan Imaging™ |
| Traditional Frequencies | 50 / 200 kHz |
| DownScan Frequencies | 455 / 800 kHz |
| Tilt Angle | 0° |
| Recommended Hull Deadrise | 0°–7° |
| Connector | 9-Pin xSonic |
| Functions | Depth, DownScan Imaging™ & Water Temperature |
| Housing Material | Bronze |
| Cable Length | 10 m (33 ft) |
Package Contents
- 1 × Lowrance xSonic Bronze HDI Through-Hull Transducer
- Bronze through-hull mounting hardware
- Installation guide
