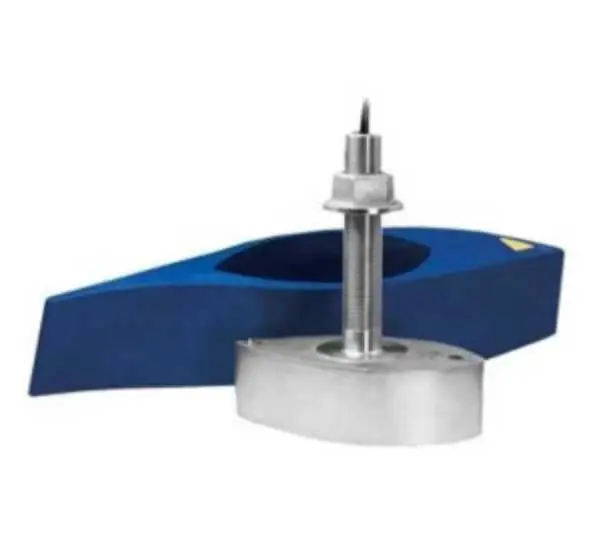

Lowrance xSonic Airmar SS260 Through-Hull Transducer (50/200 kHz, 1kW, 9-Pin)

Overview

The Lowrance xSonic Airmar SS260 is a professional-grade 1 kW stainless steel through-hull transducer designed for offshore sportfishing, commercial vessels, and serious anglers requiring exceptional deep-water sonar performance. Operating at 50/200 kHz, it delivers outstanding bottom tracking, superior fish target separation, and highly accurate depth readings in both shallow and deep water. The transducer features a 9-pin xSonic connector for compatibility with selected Lowrance, Simrad, and B&G multifunction displays.

Built with a stainless steel housing and supplied with a high-speed fairing block, the SS260 maintains optimal sonar beam alignment while minimizing turbulence at higher boat speeds. It incorporates seven ceramic elements for increased sensitivity and an integrated water temperature sensor, making it one of Airmar’s highest-performing fixed-frequency transducers.

Main Features

• 1 kW dual-frequency through-hull transducer
• 50/200 kHz broadband sonar
• Stainless steel through-hull housing
• High-speed fairing block included
• Built-in water temperature sensor
• 9-pin xSonic connector
• Seven internal ceramic elements
• Exceptional deep-water performance
• Excellent fish target separation
• Compatible with selected Lowrance, Simrad & B&G displays

Specifications

Package Contents

• 1 × Lowrance xSonic Airmar SS260 Through-Hull Transducer
• High-speed fairing block
• Stainless steel mounting hardware
• Installation guide
