Original price was: $18,000.00.$17,000.00Current price is: $17,000.00.
600W HDI Skimmer transom-mount transducer with 83/200 kHz Broadband Sonar, 455/800 kHz DownScan Imaging™, built-in temperature sensor, and 7-pin connector for compatible Lowrance fishfinders.
Stock: available

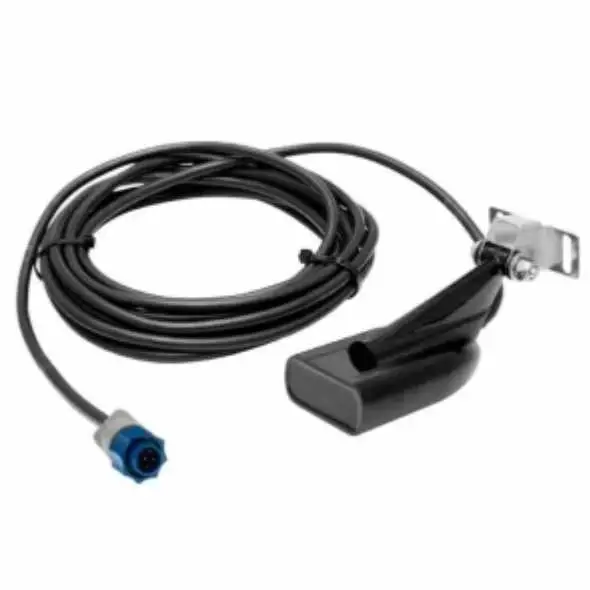

Lowrance HDI Skimmer Transducer (83/200/455/800 kHz, 600W, 7-Pin)
Overview
The Lowrance HDI Skimmer Transducer is a Hybrid Dual Imaging (HDI) transom-mount transducer that combines Broadband Sonar with DownScan Imaging™ to provide detailed underwater views, accurate depth readings, and excellent fish target separation. Operating at 83/200 kHz for traditional sonar and 455/800 kHz for DownScan Imaging, it is ideal for freshwater and coastal fishing applications. It features a 7-pin blue connector and is compatible with selected legacy Lowrance fishfinders.
Designed with a durable high-speed Skimmer® housing, the transducer delivers reliable bottom tracking while underway. It also includes an integrated water temperature sensor, stainless steel transom mounting bracket, and a 20 ft (6 m) cable for straightforward installation.
Main Features
- Hybrid Dual Imaging (HDI) transducer
- Broadband Sonar + DownScan Imaging™
- 83/200 kHz traditional sonar
- 455/800 kHz DownScan Imaging
- 600W sonar power
- Built-in water temperature sensor
- High-speed transom-mount Skimmer® design
- 7-pin blue connector
- Stainless steel mounting bracket
- 20 ft (6 m) cable
Specifications
| Specification | Value |
|---|---|
| Brand | Lowrance |
| Model | HDI Skimmer |
| Part Number | 000-10976-001 |
| Product Type | HDI Transom Mount Transducer |
| Mounting Type | Transom |
| Sonar Technology | Broadband Sonar + DownScan Imaging™ |
| Sonar Frequencies | 83 / 200 kHz |
| DownScan Frequencies | 455 / 800 kHz |
| Power Rating | 600 W |
| Connector | 7-Pin Blue |
| Functions | Depth, DownScan Imaging & Water Temperature |
| Temperature Sensor | Integrated |
| Cable Length | 20 ft (6 m) |
| Housing Material | Plastic |
Package Contents
- 1 × Lowrance HDI Skimmer Transducer
- Stainless steel transom mounting bracket
- Mounting hardware
- Installation guide
