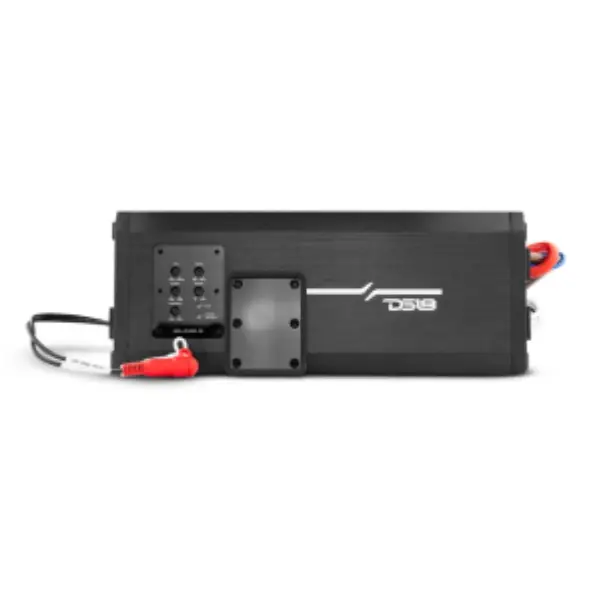

DS18 HYDRO NXL-X1000.1D Class D Marine Monoblock Amplifier

Overview

The DS18 HYDRO NXL-X1000.1D is a high-performance Class D marine monoblock amplifier engineered to deliver exceptional low-frequency power for boats, yachts, UTVs, ATVs, motorcycles, golf carts, and other powersports vehicles. Delivering up to 1000W RMS at 1Ω, it is designed to drive marine subwoofers with outstanding efficiency and reliability while maintaining a compact footprint.

Built for demanding outdoor environments, the NXL-X1000.1D features an IP67 waterproof aluminum chassis with UV and salt-fog protection, a 4-layer PCB, adjustable low-pass crossover, subsonic filter, bass boost, and phase control. Advanced protection circuitry ensures dependable operation in marine and off-road applications.

Main Features

• Class D marine monoblock amplifier
• 2000W Peak Power
• 350W RMS @ 4Ω
• 600W RMS @ 2Ω
• 1000W RMS @ 1Ω
• IP67 waterproof construction
• Variable low-pass crossover (50–250 Hz)
• Variable subsonic filter (10–55 Hz)
• Adjustable bass boost (0–18 dB @ 42 Hz)
• Variable phase control (0°–180°)
• UV and salt-fog resistant
• Clip, Power and Protection LED indicators
• 4-layer PCB with quick-connect power harness

Specifications

Package Contents

• 1 × DS18 HYDRO NXL-X1000.1D Marine Amplifier
• Power and speaker quick-connect harnesses
• Marine-grade fuse holder
• Mounting hardware
• User manual
