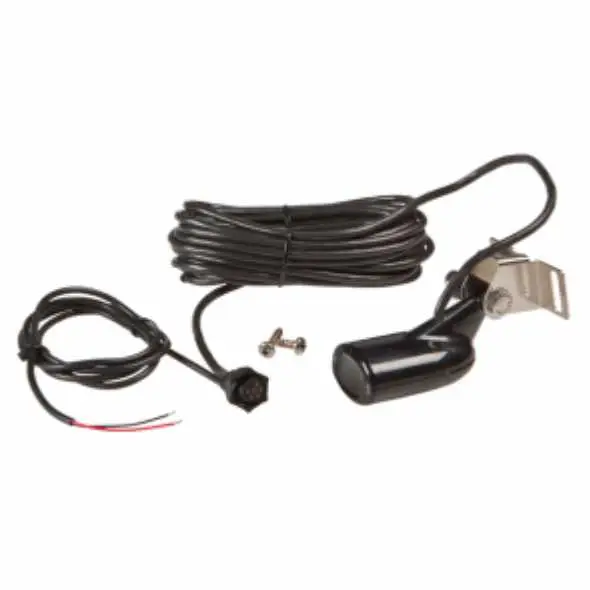

Lowrance HST-WSU Skimmer Transducer (83/200 kHz, 600W, Uni-Plug)
Overview
The Lowrance HST-WSU is a 600W dual-frequency Skimmer® transom-mount transducer designed for accurate depth, fish detection, and water temperature monitoring. Operating at 83/200 kHz, it provides wide sonar coverage at 83 kHz and enhanced target separation at 200 kHz, making it ideal for freshwater and coastal fishing applications. It features a 7-pin Uni-Plug connector for compatibility with a wide range of legacy Lowrance and Eagle fishfinders.
Its high-speed Skimmer® design minimizes turbulence for reliable sonar readings while underway. The integrated temperature sensor and durable transom mounting bracket ensure dependable performance in a variety of boating conditions.
Main Features
- 600W dual-frequency Skimmer® transducer
- 83/200 kHz sonar operation
- High-speed transom-mount installation
- Built-in depth and water temperature sensor
- 7-pin Uni-Plug connector
- Wide 83 kHz and narrow 200 kHz beam coverage
- Reliable bottom tracking at speed
- Suitable for freshwater and saltwater use
- Compatible with many legacy Lowrance & Eagle fishfinders
Specifications
| Specification | Value |
|---|---|
| Brand | Lowrance |
| Model | HST-WSU |
| Part Number | 000-0106-48 |
| Product Type | Transom Mount Transducer |
| Mounting Type | Transom |
| Frequency | 83 / 200 kHz |
| Power Rating | 600 W |
| Beam Angle | 52° @ 83 kHz / 22° @ 200 kHz |
| Connector | 7-Pin Uni-Plug |
| Functions | Depth, Fish Detection & Water Temperature |
| Cable Length | 20 ft (6 m) |
| Housing Material | Plastic |
| Maximum Depth | Up to 1,000 ft (300 m) @ 83 kHz |
Package Contents
- 1 × Lowrance HST-WSU Skimmer Transducer
- Transom mounting bracket
- Mounting hardware
- Installation guide
